NCP603SN330T1G IC REG LINEAR 3.3V 300MA 5TSOP onsemi

Name: NCP603SN330T1G IC REG LINEAR 33V 300MA 5TSOP onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : NCP603SN330T1G

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 6V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.23V @ 300mA

Current - Output : 300mA

Current - Quiescent (Iq) : 180 µA

Current - Supply (Max) : -

PSRR : 62dB ~ 38dB (120Hz ~ 10kHz)

Control Features : Enable

Protection Features : Over Current, Over Temperature, Transient Voltage

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : SOT-23-5 Thin, TSOT-23-5

Supplier Device Package : 5-TSOP

Contact Now

Product Details

The NCP603 provides 300 mA of output current at fixed voltage options, or an adjustable output voltage from 5.0 V down to 1.250 V. It is designed for portable battery powered applications and offers high performance features such as low power operation, fast enable response time, and low dropout.

The device is designed to be used with low cost ceramic capacitors and is packaged in the TSOP-5/SOT23-5.

Features

• Output Voltage Options:
Adjustable, 1.3 V, 1.5 V, 1.8 V, 2.8 V, 3.0 V, 3.3 V, 3.5 V, 5.0 V
• Adjustable Output by External Resistors from 5.0 V down to 1.250 V
• Fast Enable Turn-on Time of 15 s
• Wide Supply Voltage Range Operating Range
• Excellent Line and Load Regulation
• Typical Noise Voltage of 50 Vrms without a Bypass Capacitor
• Enhanced ESD Protection (HBM 3.5 kV, MM 400 V)
• These are Pb-Free Devices

Typical Applications

• SMPS Post-Regulation
• Hand-held Instrumentation & Audio Players
• Noise Sensitive Circuits – VCO, RF Stages, etc.
• Camcorders and Cameras
• Portable Computing

Specifications

Attribute	Attribute Value
Manufacturer	onsemi
Product Category	Linear Voltage Regulators
Series	NCP603
Packaging	Alternate Packaging
Mounting-Style	SMD/SMT
Package-Case	SOT-23-5 Thin, TSOT-23-5
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Output-Type	Fixed
Supplier-Device-Package	5-TSOP
Voltage-Input	Up to 6V
Number-of-Outputs	1 Output
Current-Output	300mA
Voltage-Output	3.3V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.157V @ 300mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	300mA
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Output-Voltage	3.3 V
Input-Voltage-MAX	6 V
Output-Current	300 mA
Input-Voltage-MIN	+ 1.75 V
Load-Regulation	45 mV
Voltage-Regulation-Accuracy	3 %
Package-Case	TSOP-5
Dropout-Voltage	0.075 V at 150 mA
Dropout-Voltage-Max	125 mV at 150 mA
Line-Regulation	10 mV

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 300mA 5-TSOP

LDO Regulator Pos 3.3V 0.3A 5-Pin TSOP T/R

LDO Voltage Regulators 300mA CMOS LDO REG WITH ENABLE

Quality NCP603SN330T1G IC REG LINEAR 3.3V 300MA 5TSOP onsemi for sale

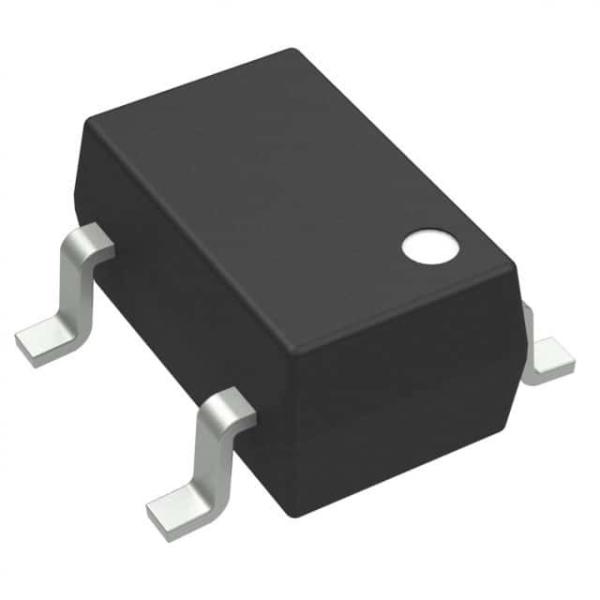

NCP603SN330T1G IC REG LINEAR 3.3V 300MA 5TSOP onsemi Images
