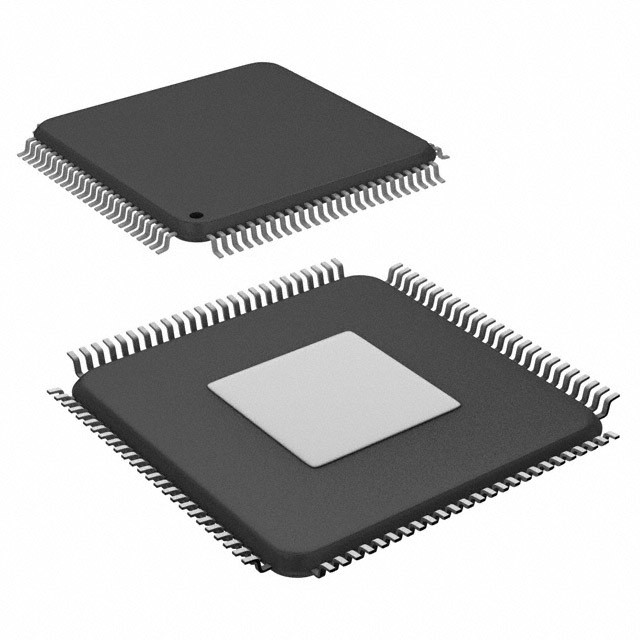

XMC4800F100K2048AAXQMA1 IC MCU 32BIT 2MB FLASH 100LQFP Infineon Technologies

Name: XMC4800F100K2048AAXQMA1 IC MCU 32BIT 2MB FLASH 100LQFP Infineon Technologies
Brand: Infineon Technologies
Price: 1 USD

Brand Name : Infineon Technologies

Model Number : XMC4800F100K2048AAXQMA1

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : ARM® Cortex®-M4

Core Size : 32-Bit Single-Core

Speed : 144MHz

Connectivity : CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SPI, UART/USART, USB OTG, USIC

Peripherals : DMA, I²S, LED, POR, Touch-Sense, WDT

Number of I/O : 75

Program Memory Size : 2MB (2M x 8)

Program Memory Type : FLASH

EEPROM Size : -

RAM Size : 352K x 8

Voltage - Supply (Vcc/Vdd) : 3.13V ~ 3.63V

Data Converters : A/D 24x12b; D/A 2x12b

Oscillator Type : External

Operating Temperature : -40°C ~ 125°C (TA)

Mounting Type : Surface Mount

Package / Case : 100-LQFP Exposed Pad

Supplier Device Package : PG-LQFP-100-25

Contact Now

Product Details

ARM® Cortex™-M4 32-bit processor core

Microcontroller Series for Industrial Applications XMC4000 Family

Summary of Features
The XMC4[12]00 devices are members of the XMC4000 Family of microcontrollers based on the ARM Cortex-M4 processor core. The XMC4000 is a family of high performance and energy efficient microcontrollers optimized for Industrial Connectivity, Industrial Control, Power Conversion, Sense & Control.

Specifications

Attribute	Attribute Value
Manufacturer	Infineon
Product Category	Microcontrollers
Series	XMC4000
Product	MCU
Packaging	Tray
Unit-Weight	0.046530 oz
Mounting-Style	SMD/SMT
Package-Case	100-LQFP Exposed Pad
Operating-Temperature	-40°C ~ 125°C (TA)
Supplier-Device-Package	PG-LQFP-100-25
Number-of-I-O	75 I/O
Speed	144MHz
EEPROM-Size	-
Core-Processor	ARMR CortexR-M4
RAM-Size	352K x 8
Program Memory	FLASH
Peripherals	DMA, I2S, LED, POR, Touch-Sense, WDT
Connectivity	CAN, EBI/EMI, Ethernet, I2C, LIN, MMC/SD, SPI, UART/USART, USB OTG, USIC
Voltage-Supply-Vcc-Vdd	3.13 V ~ 3.63 V
Core-Size	32-Bit
Program-Memory-Size	2MB (2M x 8)
Data-Converters	A/D 24x12b, A/D 2x12b
Oscillator-Type	External
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Operating-Supply-Voltage	3.3 V
Interface-Type	CAN I2C I2S LIN SPI UART USB
Core	ARM Cortex M4
Processor-Series	XMC4000
Part-#-Aliases	AA SP001311796 XMC4800-F100K2048
Data-Bus-Width	32 bit/16 bit
Supply-Voltage-Max	3.63 V
Supply-Voltage-Min	3.13 V
Package-Case	LQFP-100
Maximum-Clock-Frequency	144 MHz
Number-of-ADC-Channels	24 Channel
Data-RAM-Size	352 kB
Data-ROM-Size	16 kB
Watchdog-Timers	Watchdog Timer
ADC-Resolution	12 bit
Data-RAM-Type	SRAM
Data-ROM-Type	ROM
DAC-Resolution	12 bit

Descriptions

ARM? Cortex?-M4 XMC4000 Microcontroller IC 32-Bit 144MHz 2MB (2M x 8) FLASH PG-LQFP-100-25

MCU 32-bit ARM Cortex M4 RISC 2MB Flash 3.3V 100-Pin LQFP EP Tray

ARM Microcontrollers - MCU XMC4000
