STWD100NPWY3F IC SUPERVISOR 1 CHANNEL SOT23-5 STMicroelectronics

Name: STWD100NPWY3F IC SUPERVISOR 1 CHANNEL SOT235 STMicroelectronics
Brand: STMicroelectronics
Price: 1 USD

Brand Name : STMicroelectronics

Model Number : STWD100NPWY3F

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Type : Watchdog Circuit

Number of Voltages Monitored : 1

Voltage - Threshold : -

Output : Open Drain or Open Collector

Reset : Active Low

Reset Timeout : 2.3ms Minimum

Operating Temperature : -40°C ~ 125°C (TA)

Mounting Type : Surface Mount

Package / Case : SC-74A, SOT-753

Supplier Device Package : SOT-23-5

Contact Now

Product Details

The STMicroelectronics STWD100NPWY3F is a high-performance watchdog circuit designed for automotive applications. It features an open drain or open collector active low output, and is capable of operating in temperatures ranging from -40°C to 125°C. The circuit has a minimum reset time of 2.3 ms, and is AEC-Q100 certified for automotive use. The STWD100NPWY3F is packaged in a SOT-23-5 form factor, making it ideal for space-constrained applications. With its robust design and reliable performance, the STWD100NPWY3F is the perfect choice for automotive applications requiring a watchdog circuit.

Specifications

Attribute	Attribute Value
Manufacturer	STMicroelectronics
Product Category	Supervisors
Series	Automotive, AEC-Q100
Type	Watchdog Circuit
Packaging	Alternate Packaging
Unit-Weight	0.001058 oz
Mounting-Style	SMD/SMT
Package-Case	SC-74A, SOT-753
Operating-Temperature	-40°C ~ 125°C (TA)
Mounting-Type	Surface Mount
Supplier-Device-Package	SOT-23-5
Output	Open Drain or Open Collector
Reset	Active Low
Voltage monitoring relays	1
Reset-Timeout	2.3 ms Minimum
Voltage-Threshold	-
Pd-Power-Dissipation	320 mW
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	2.7 V
Package-Case	SOT-23-5

Descriptions

Supervisor Open Drain or Open Collector 1 Channel SOT-23-5

Processor Supervisor 1 Open Drain/Push-Pull 5-Pin SOT-23 T/R

Supervisory Circuits WATCHDOG TIMER CIRCUIT

Quality STWD100NPWY3F IC SUPERVISOR 1 CHANNEL SOT23-5 STMicroelectronics for sale

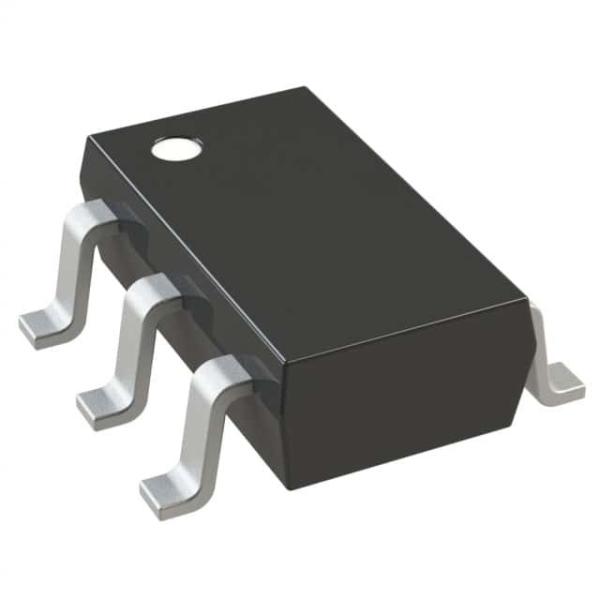

STWD100NPWY3F IC SUPERVISOR 1 CHANNEL SOT23-5 STMicroelectronics Images
