EL5378IUZ IC OPAMP DIFF 3 CIRC 28SSOP/QSOP Renesas Electronics America Inc

Brand Name : Renesas Electronics America Inc

Model Number : EL5378IUZ

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : Differential

Number of Circuits : 3

Output Type : Differential

Slew Rate : 1000V/µs

Gain Bandwidth Product : 350 MHz

-3db Bandwidth : 700 MHz

Current - Input Bias : 14 µA

Voltage - Input Offset : 1.9 mV

Current - Supply : 12.5mA (x3 Channels)

Current - Output / Channel : 100 mA

Voltage - Supply Span (Min) : 4.75 V

Voltage - Supply Span (Max) : 11 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 28-SSOP (0.154", 3.90mm Width)

Supplier Device Package : 28-SSOP/QSOP

Contact Now

Product Details

The EL5178 and EL5378 are single and triple high bandwidth amplifiers with an output in differential form. They are primarily targeted for applications such as driving twisted-pair lines in component video applications. The inputs can be in either single-ended or differential form but the outputs are always in differential form.

On the EL5178 and EL5378, two feedback inputs provide the user with the ability to set the gain of each device

Features

• Fully differential inputs, outputs, and feedback
• Differential input range ±2.3V
• 700MHz 3dB bandwidth
• 1000V/µs slew rate
• Low distortion at 5MHz and 20MHz
• Single 5V or dual ±5V supplies
• 60mA maximum output current
• Low power - 12.5mA per channel
• Pb-free available (RoHS compliant)

Applications

• Twisted-pair driver
• Differential line driver
• VGA over twisted-pair
• ADSL/HDSL driver
• Single ended to differential amplification
• Transmission of analog signals in a noisy environment

Specifications

Attribute Attribute Value
Manufacturer Renesas
Product Category Instrumentation Amplifier
Series EL5378
Product Differential Amplifiers
Packaging Tube
Mounting-Style SMD/SMT
Number-of-Channels 3 Channel
Amplifier-Type Driver
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Operating-Supply-Current 42 mA
Supply-Voltage-Max 11 V
Supply-Voltage-Min 4.75 V
Package-Case QSOP-28
Ib-Input-Bias-Current 7 uA
Vos-Input-Offset-Voltage 30 mV
PSRR-Power-Supply-Rejection-Ratio 60 dB
GBP-Gain-Bandwidth-Product 350 MHz
Gain-V-V 2 V/V
Maximum-Input-Resistance 150 kOhms

Descriptions

Differential Amplifier 3 Circuit Differential 28-QSOP
SP Amp DIFF Line Driver Amp Triple 卤5.5V/11V 28-Pin QSOP Tube
Differential Amplifiers EL5378IUZ 700MHZ DIF TWISTED-PAIR DRVRS

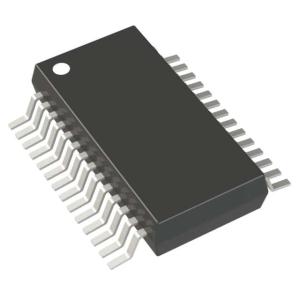

Quality EL5378IUZ IC OPAMP DIFF 3 CIRC 28SSOP/QSOP Renesas Electronics America Inc for sale
