LT3579EFE#PBF IC REG MULT CONFG ADJ 6A 20TSSOP Analog Devices Inc.

Name: LT3579EFEPBF IC REG MULT CONFG ADJ 6A 20TSSOP Analog Devices Inc
Brand: Analog Devices Inc.
Price: 1 USD

Brand Name : Analog Devices Inc.

Model Number : LT3579EFE#PBF

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Up, Step-Up/Step-Down

Output Configuration : Positive or Negative

Topology : Boost, Charge Pump, Cuk, Flyback, SEPIC

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 2.5V

Voltage - Input (Max) : 16V

Voltage - Output (Min/Fixed) : 1.215V

Voltage - Output (Max) : 42V (Switch)

Current - Output : 6A (Switch)

Frequency - Switching : 200kHz ~ 2.5MHz

Synchronous Rectifier : No

Operating Temperature : -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Package / Case : 20-TSSOP (0.173", 4.40mm Width) Exposed Pad

Supplier Device Package : 20-TSSOP-EP

Contact Now

Product Details

DESCRIPTION

The LT®3579 is a PWM DC/DC converter with built-in fault protection features to aid in protecting against output shorts, input/output overvoltage, and overtemperature conditions. The part consists of a 42V master switch, and a 42V slave switch that can be tied together for a total current limit of 6A.

FEATURES

■ 6A, 42V Combined Power Switch
■ Output Short Circuit Protection
■ Wide Input Range: 2.5V to 16V Operating, 40V Maximum Transient
■ LT3579-1: Dual-Phase Capable
■ Master/Slave (3.4A/2.6A) Switch Design
■ User Configurable Undervoltage Lockout
■ Easily Configurable as a Boost, SEPIC, Inverting, or Flyback Converter
■ Low VCESAT Switch: 250mV at 5.5A (Typical)
■ Can Be Synchronized to External Clock
■ Can Synchronize other Switching Regulators
■ High Gain SHDN Pin Accepts Slowly Varying Input Signals
■ 20-Lead TSSOP and 20-Pin 4mm × 5mm QFN Packages

APPLICATIONS

■ Local Power Supply
■ Vacuum Fluorescent Display (VFD) Bias Supplies
■ TFT-LCD Bias Supplies
■ Automotive Engine Control Unit (ECU) Power

Specifications

Attribute	Attribute Value
Manufacturer	Analog Devices / Linear Technology
Product Category	DC Switching Regulators
Series	-
Packaging	Tube Alternate Packaging
Package-Case	20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Operating-Temperature	-40°C ~ 125°C (TJ)
Mounting-Type	Surface Mount
Output-Type	Adjustable
Function	Step-Up, Step-Up/Step-Down
Supplier-Device-Package	20-TSSOP-EP
Number-of-Outputs	1 Output
Topology	Boost, Charge Pump, Cuk, Flyback, SEPIC
Frequency-Switching	200kHz ~ 2.5MHz
Current-Output	6A (Switch)
Output-Configuration	Positive or Negative
Output Voltage	1.215V
Voltage-Output-Max	42V (Switch)
Synchronous-Rectifier	No
Voltage-Input-Min	2.5V
Voltage-Input-Max	16V

Descriptions

Boost, Charge Pump, Cuk, Flyback, SEPIC Switching Regulator IC Positive or Negative Adjustable 1.215V 1 Output 6A (Switch) 20-TSSOP (0.173", 4.40mm Width) Exposed Pad

LT3579 - 6A Boost/Inverting DC/DC Converter with Fault Protection

Quality LT3579EFE#PBF IC REG MULT CONFG ADJ 6A 20TSSOP Analog Devices Inc. for sale

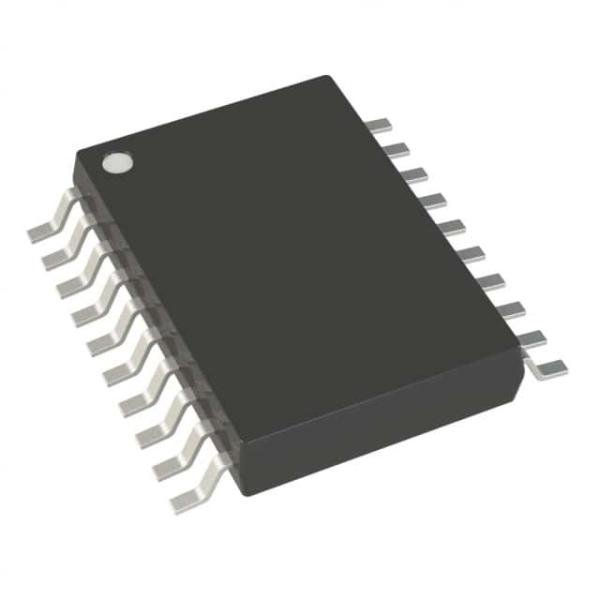

LT3579EFE#PBF IC REG MULT CONFG ADJ 6A 20TSSOP Analog Devices Inc. Images
